Double and Multiple Effect Evaporator – Energy-Efficient Evaporation Systems

Double effect and multiple effect evaporators are energy-efficient evaporation systems designed to reduce steam consumption by reusing secondary vapor generated during the concentration process.

The working principle of a multiple effect evaporator is based on cascade heat utilization. Vapor produced in one effect is used as the heating medium for the next effect, which improves thermal efficiency, lowers energy demand, and reduces operating cost. This design is widely used in industrial evaporation, concentration, and solvent recovery processes.

SAIDELICHEM supplies modular evaporation systems ranging from double effect evaporators to triple effect, four-effect, five-effect, and customized multi-effect evaporator systems. Each unit can integrate evaporators, condensers, pumps, heat exchangers, and automatic controls into a compact skid-mounted design for efficient operation and easier installation.

Key Features

  • Energy-saving evaporation through secondary steam reuse
  • Lower steam consumption and reduced operating cost
  • Modular skid-mounted design for compact installation
  • Flexible configuration from double to multiple effects
  • Stable and reliable performance for industrial concentration processes
Get A Quote

Main Components of a Multiple Effect Evaporator System

A typical multiple effect evaporation system integrates several process units to achieve efficient evaporation, concentration, and thermal reuse.

Core Components

  • First-effect evaporator
  • Second-effect evaporator
  • Third-effect evaporator or additional effect stages
  • Condenser system
  • Steam heating system
  • Circulation pumps
  • Heat exchangers
  • Product collection tanks
  • Instrumentation and automatic control system

All units are integrated on a skid frame and pre-assembled in the factory, allowing faster site installation and commissioning.

Advantages Of Our Double Effect Evaporator Systems

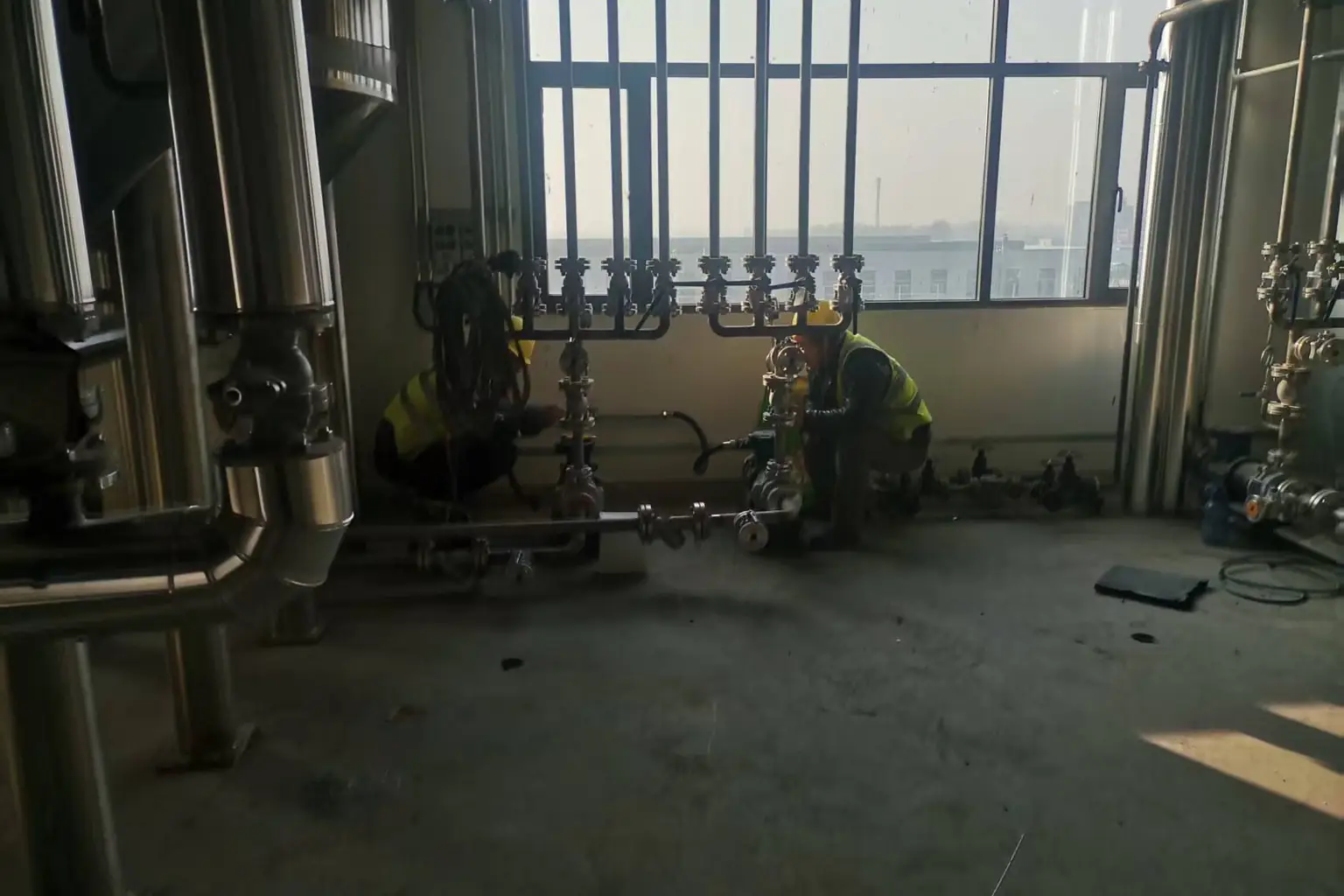

Main Components Of A Double Effect Evaporator System

Advantages of Our Evaporation Systems

  • Lower Energy Consumption
    One of the main advantages of a multiple effect evaporator is its ability to reuse vapor from each stage, significantly reducing steam demand compared with a single effect evaporator.
  • High Thermal Efficiency
    The multiple effect evaporator working principle improves heat utilization by transferring energy from one effect to the next in sequence.
  • Flexible Effect Arrangement
    We support double effect evaporator, triple effect evaporator, four-effect evaporator, five-effect evaporator, and customized configurations based on throughput, material characteristics, and process requirements.
  • Modular Skid-Mounted Design
    The integrated skid structure saves installation time, simplifies piping connections, and makes system layout more compact.
  • Wide Application Range
    These systems are suitable for chemical processing, pharmaceutical production, traditional Chinese medicine extraction, food concentration, and related industrial uses.
  • Flexible Material Selection
    316L stainless steel, TP304, HC276, and other corrosion-resistant materials can be selected according to the feed liquid and operating conditions.
  • Easier Operation and Maintenance
    Integrated controls and a pre-engineered layout help simplify operation, inspection, and routine maintenance.
Get A Quote

Applications of Double and Multiple Effect Evaporators

These evaporation systems are widely used in industries that require liquid concentration, solvent recovery, or volume reduction.

Technical Parameters of Multiple Effect Evaporation Systems

Typical specifications of our evaporation systems include:

Application Scenario Throughput Range Typical Skid Dimensions Core Materials Scope of Design
General Chemical Double Effect Evaporator 1 – 10 t/h 4.5 × 2.0 × 3.8 – 7.0 m 316L Stainless Steel Single Evaporator / Integrated Evaporation System
Pharmaceutical Double Effect Evaporator 0.5 – 5 t/h 3.8 × 1.8 × 3.2 – 4.2 m TP316L / TP304 / HC276 Single Evaporator / Integrated Evaporation System
Food-grade Double Effect Evaporator 0.3 – 8 t/h 4.2 × 1.9 × 3.5 – 4.5 m 316L Stainless Steel (FDA compliant sealing materials) Single Evaporator / Integrated Evaporation System

* Materials and dimensions can be customized according to process requirements.

Get A Quote

More Process Equipment from SAIDELICHEM

In addition to double or multiple effect evaporator systems, SAIDELICHEM also manufactures modular chemical process equipment for distillation, reaction, heating, and liquid handling applications.

Start Your Chemical Process Project

Our engineering team provides customized multiple effect evaporator systems tailored to your process requirements. Contact us today to discuss your evaporation project and find the most suitable solution for your production process.
